IFE Hardwares
From smart display units to power supplies, our in-house manufactured IFE components are ready to supply your need

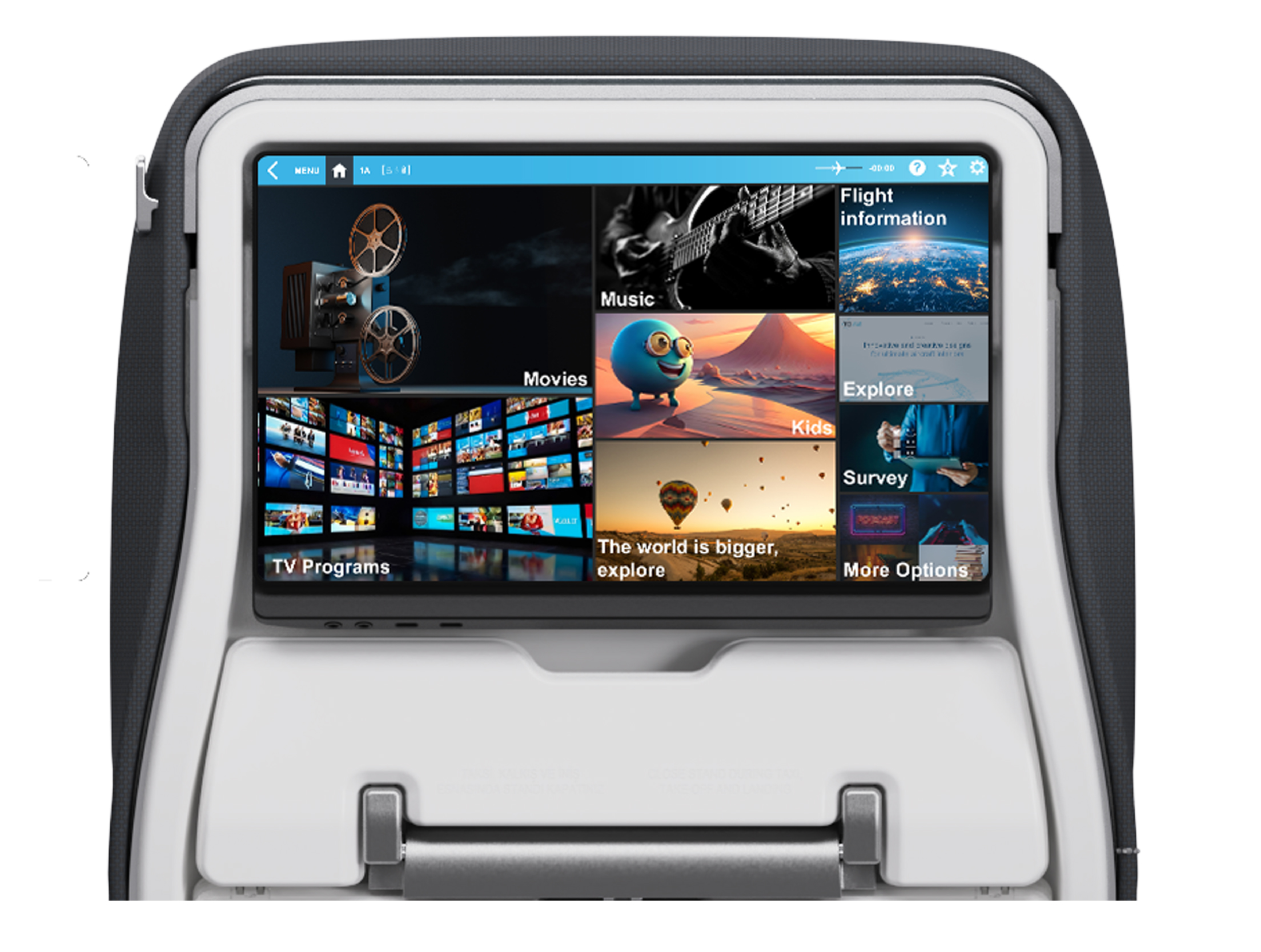

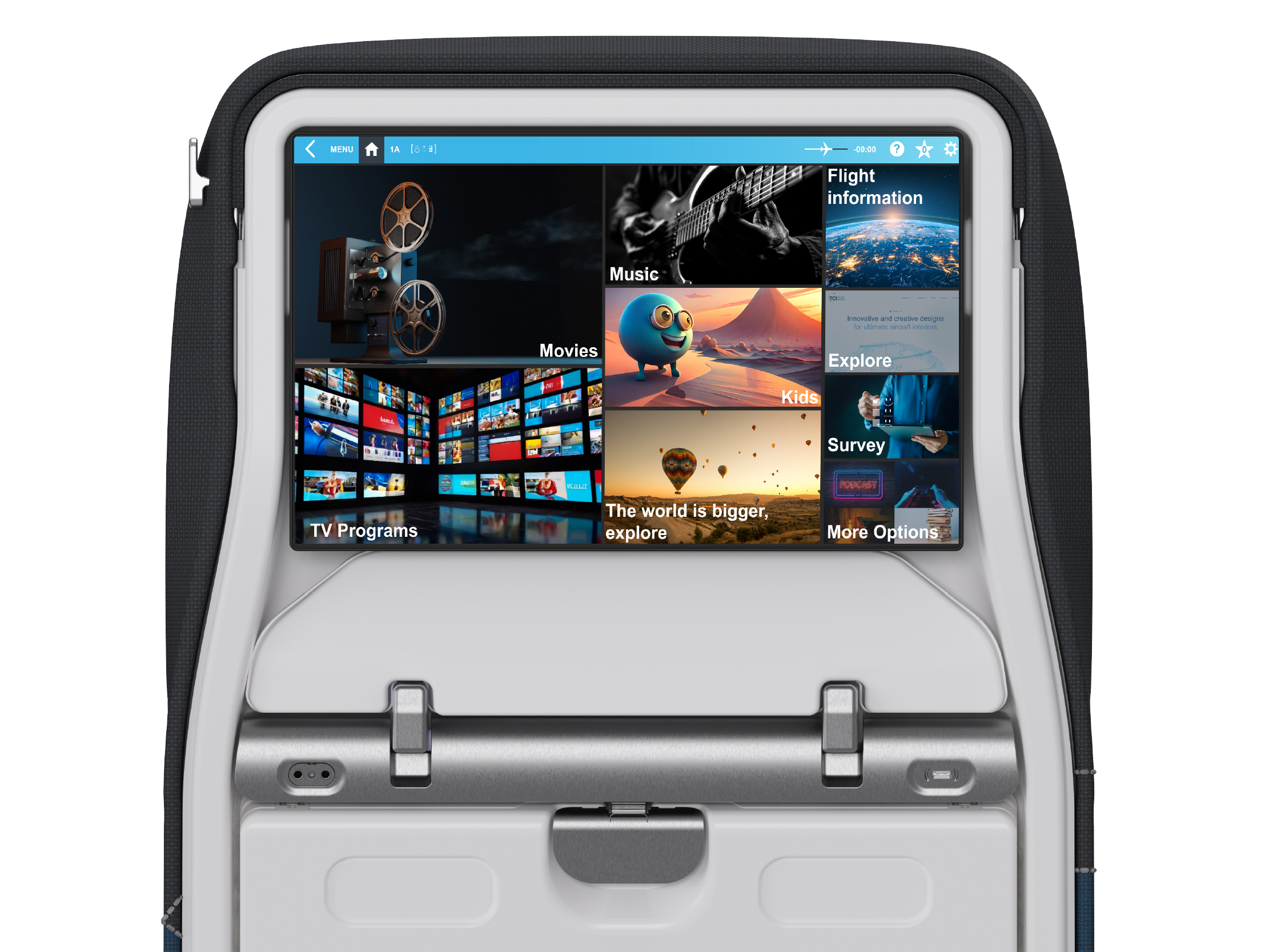

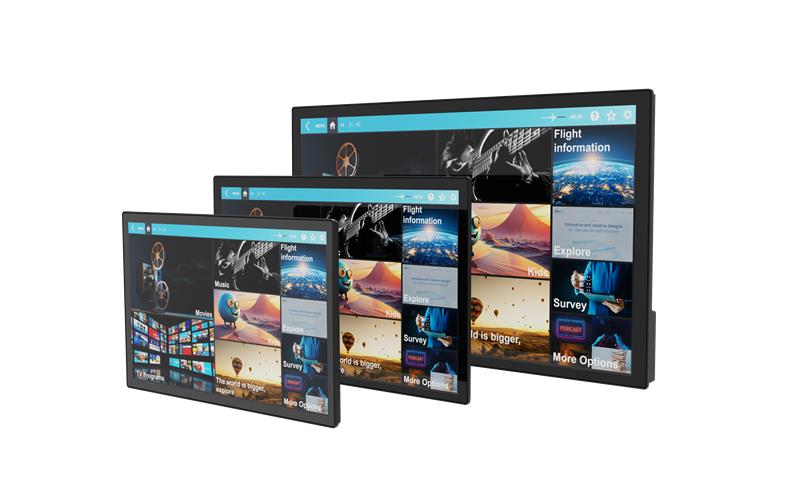

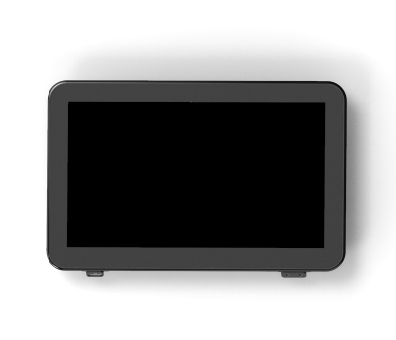

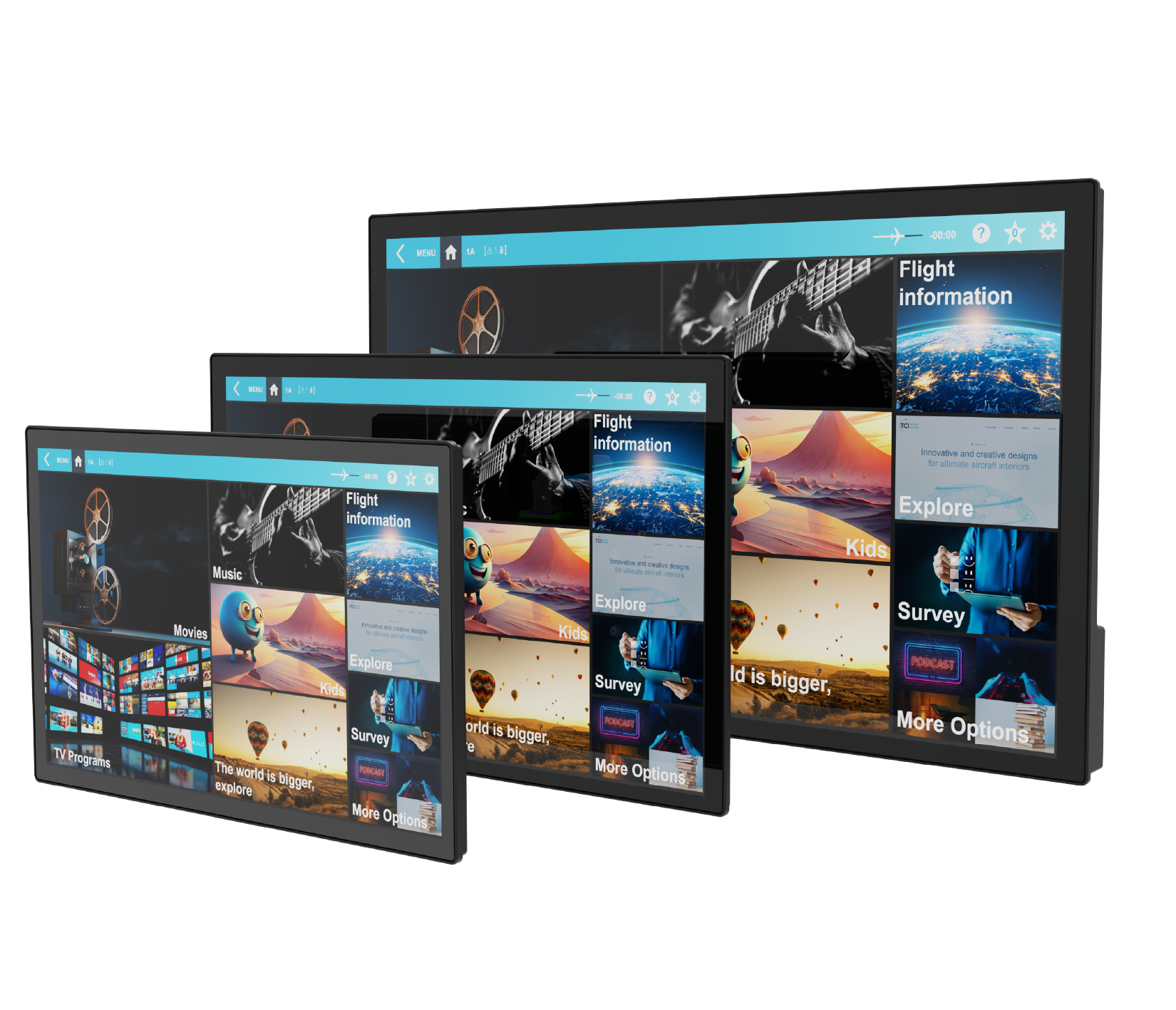

    4K Display Unit
    • Modern & Slim Design
    • 4K QD-miniLED Panel
    • Display dimensions:13.3", 15.6", 21.5"
    • Multi-Touch Capacitive screen
    • 28 VDC Power Input
    • Media Streaming on GMSL2
    • Dynamic Backlight Control
    • Up to 1000nit Brightness
    • 1.000.000:1 Contrast Ratio
    • %99 Color Gamut

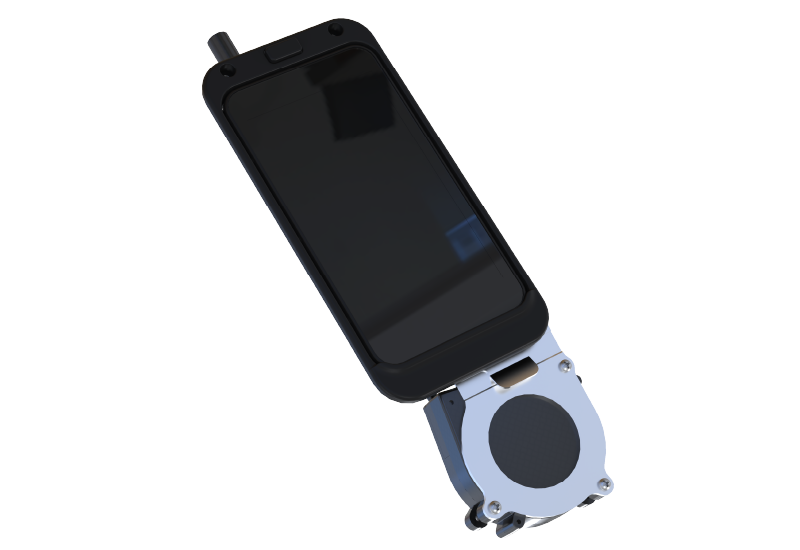

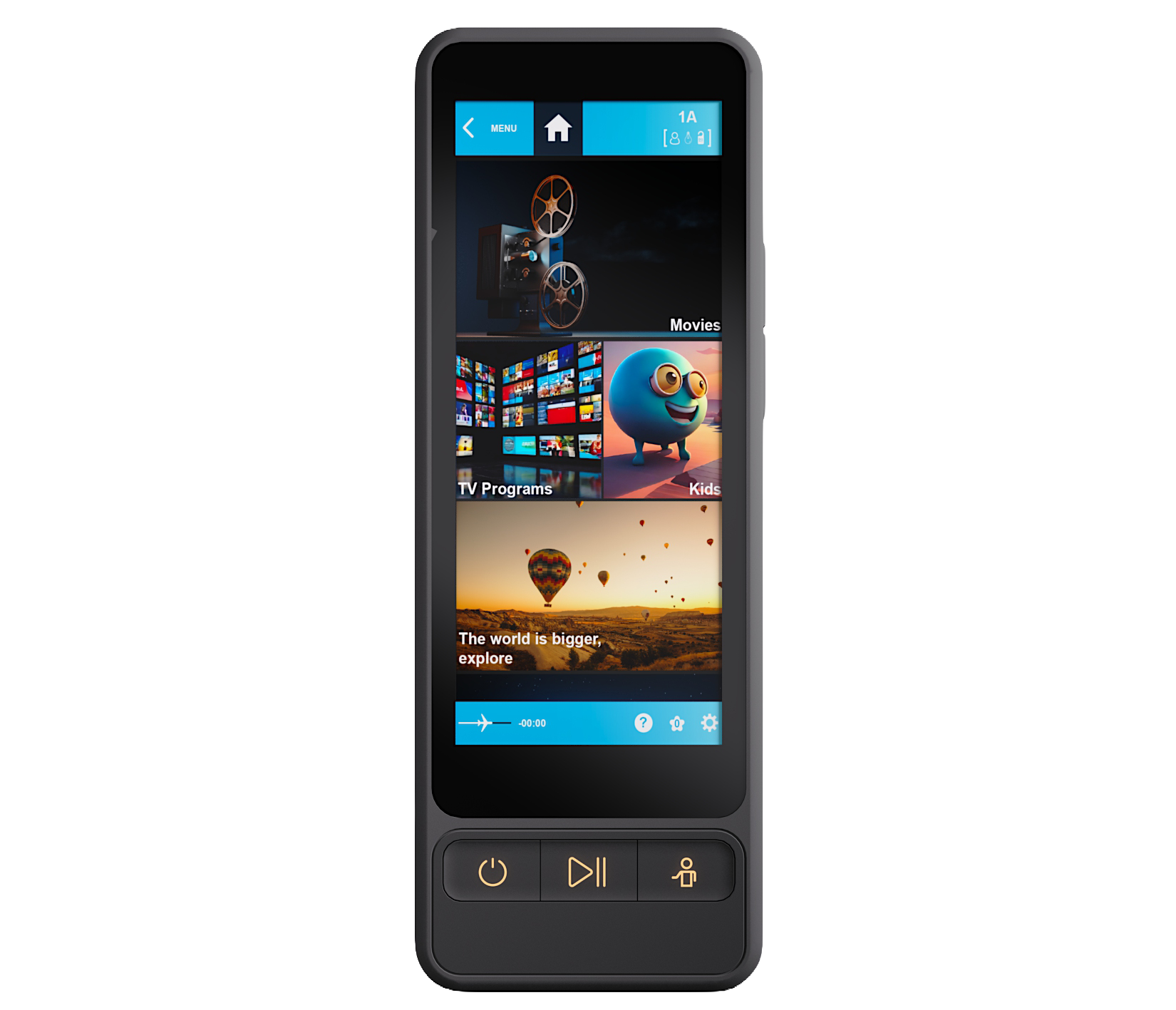

    Handset
    • 4" HD LCD display
    • Android operating system
    • Onscreen keyboard
    • Ergonomic & Elegant design
    • Multi-Touch Capacitive Screen
    • Ethernet Connection (100 Mbps)
    • Accelerometer-Gyroscope-Magnetometer
    Compact Control Unit (CCU)
    • Compact Design
    • ARM CPU Based
    • 28VDC Power Input
    • Ethernet Connection (100 Mbps)
    • Magnetometer

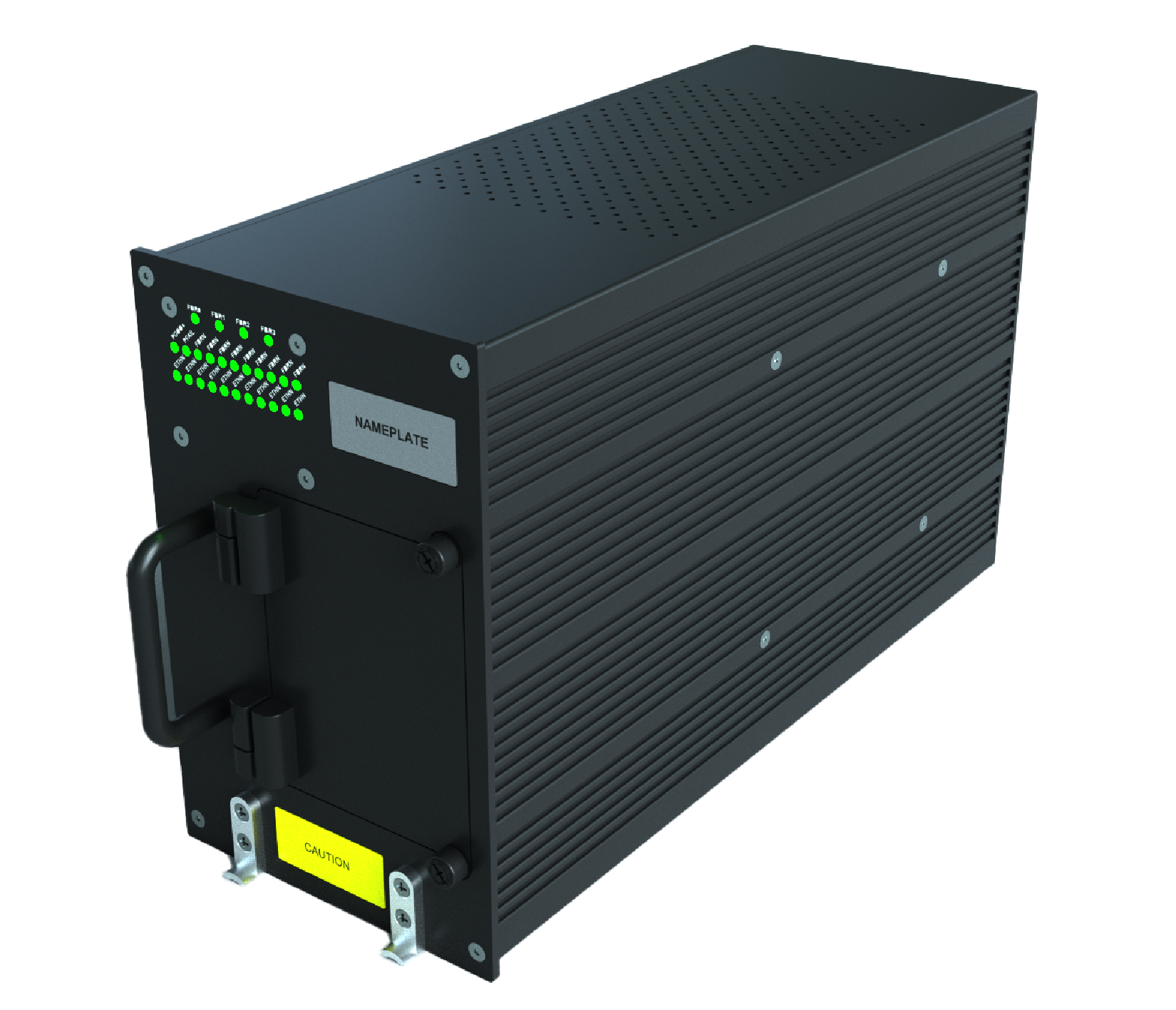

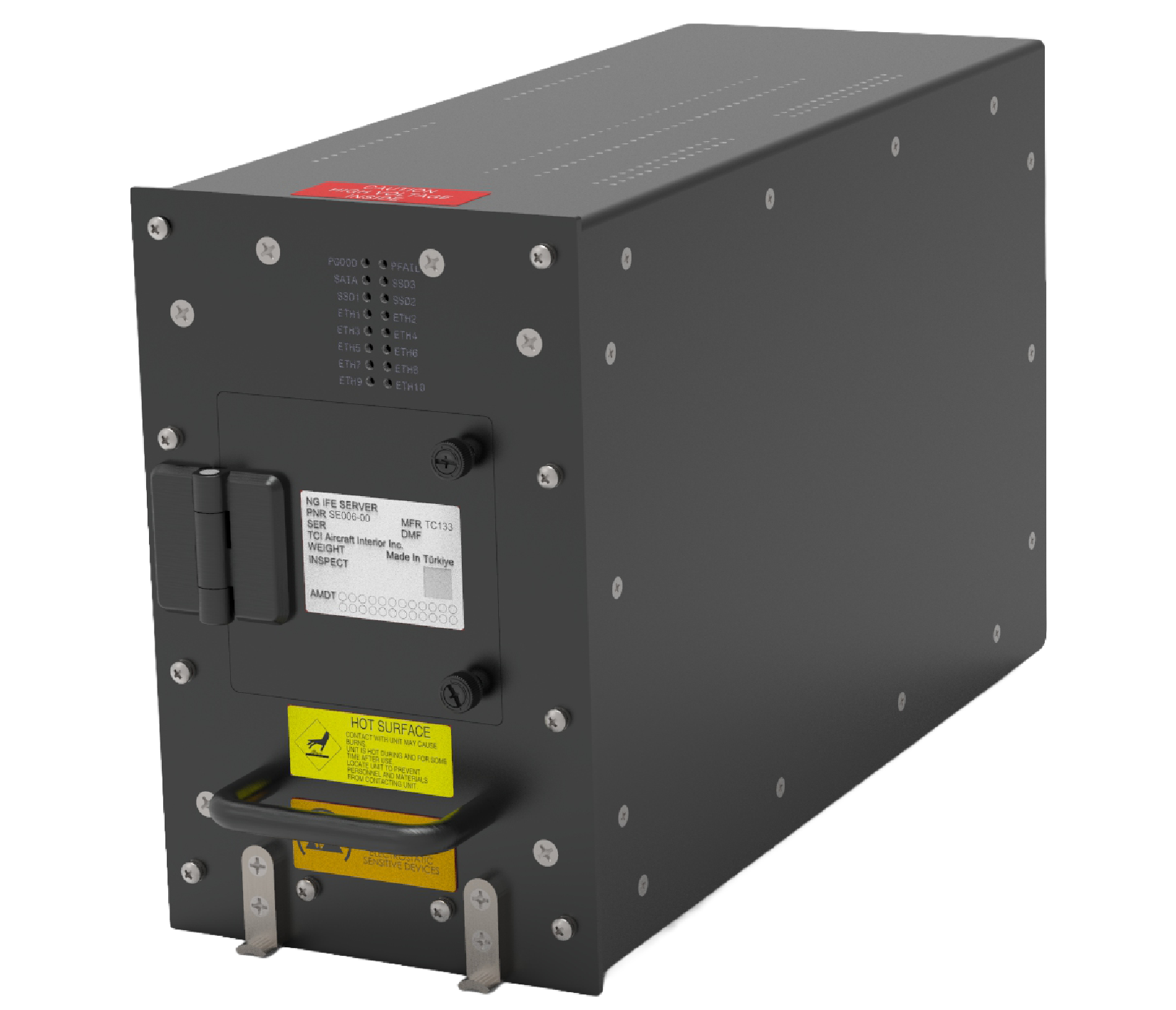

    IFE Server
    • ARINC 600 Form Factor, 4MCU
    • AMD Processor
    • 8 x 2.5 Gbps Ethernet Output
    • 2 x 100 Mbps Ethernet Output
    • 8/4 ARINC 429 Input/Output
    • 17/6 Discrete Input/Output
    • 3/5 Audio Input/Output
    • RS485-RS422-RS232
    • 8 TB SSD storage (upgradeable)

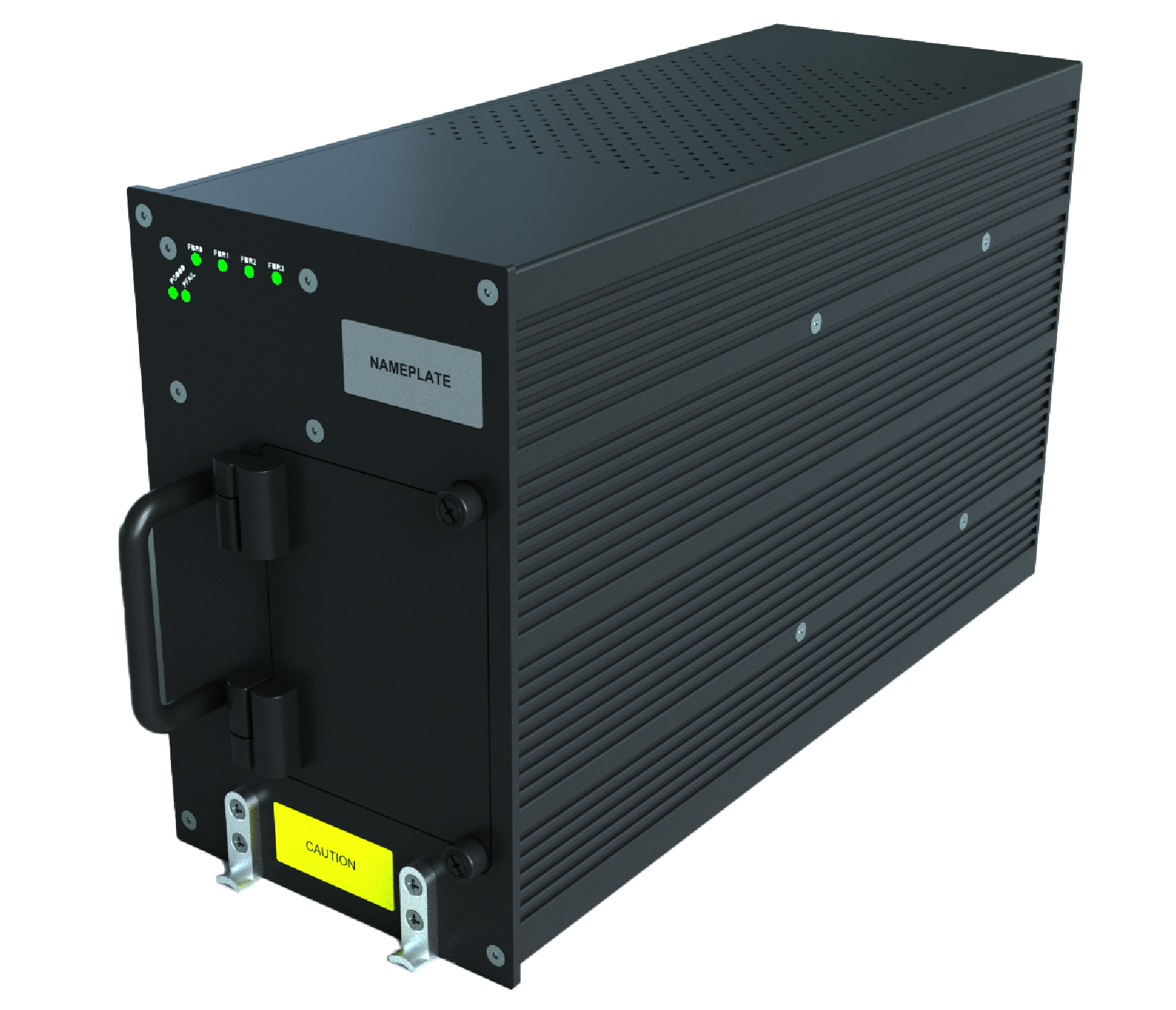

    Media Server
    • ARINC 600 Form Factor, 4MCU
    • Intel i7 Processor
    • 4 x 10 Gbps Fiber Ethernet I/O
    • 115 VAC 360-800 Hz Power Input
    • 8/8 x Discrete Input/Output
    • 1 x HDMI
    • 2 x USB 3.0
    • 1 x RJ45 Ethernet
    • 6 TB SSD Capacity (upgradeable)
    Network Server
    • ARINC 600 Form Factor, 4MCU
    • Managed Ethernet Switch Topology
    • 4 x 10 Gbps Fiber Ethernet I/O
    • 12 x 1 Gbps Fiber Ethernet I/O
    • 8 x 100 Mbps Ethernet I/O
    • 115 VAC 360-800 Hz Power Input
    • 16/8 x Discrete Input/Output
    • 4 x Address Input
    • 1 x RS232 for Maintenance

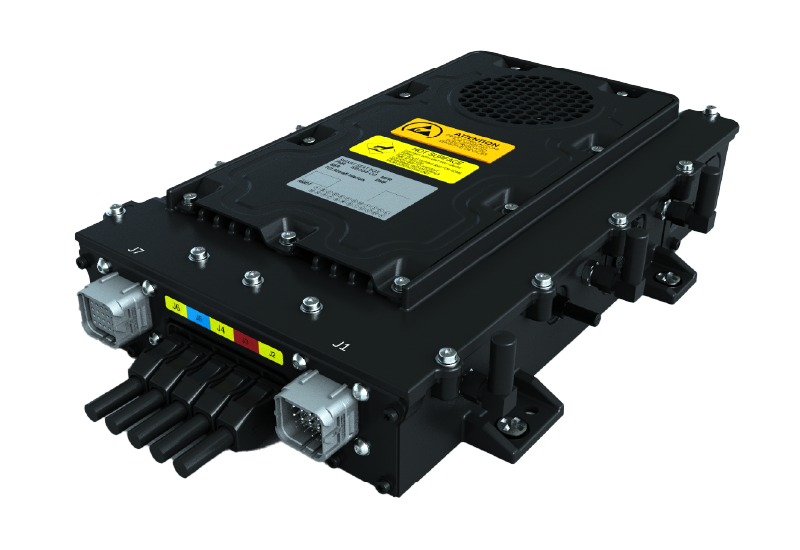

    Smart Seat Box
    • 256 Gb-2TB SSD Internal Storage (Upgradable)
    • 3 x 4K independent streaming
    • ARINC 600 Form Factor
    • 3 x 100 Mbps Ethernet Connection
    • 28 VDC Power Input-Output
    • Bluetooth Module for Headset
    • 2 x 2.5 Gbps Ethernet Connection with Daisy Chain

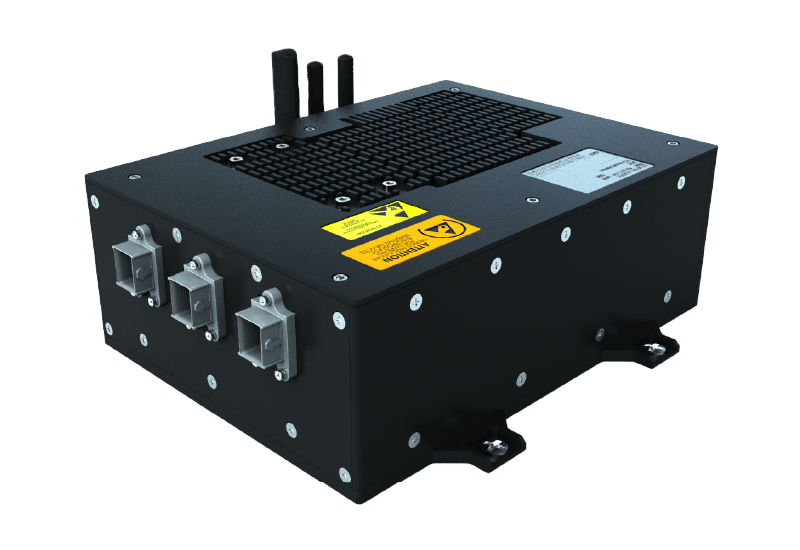

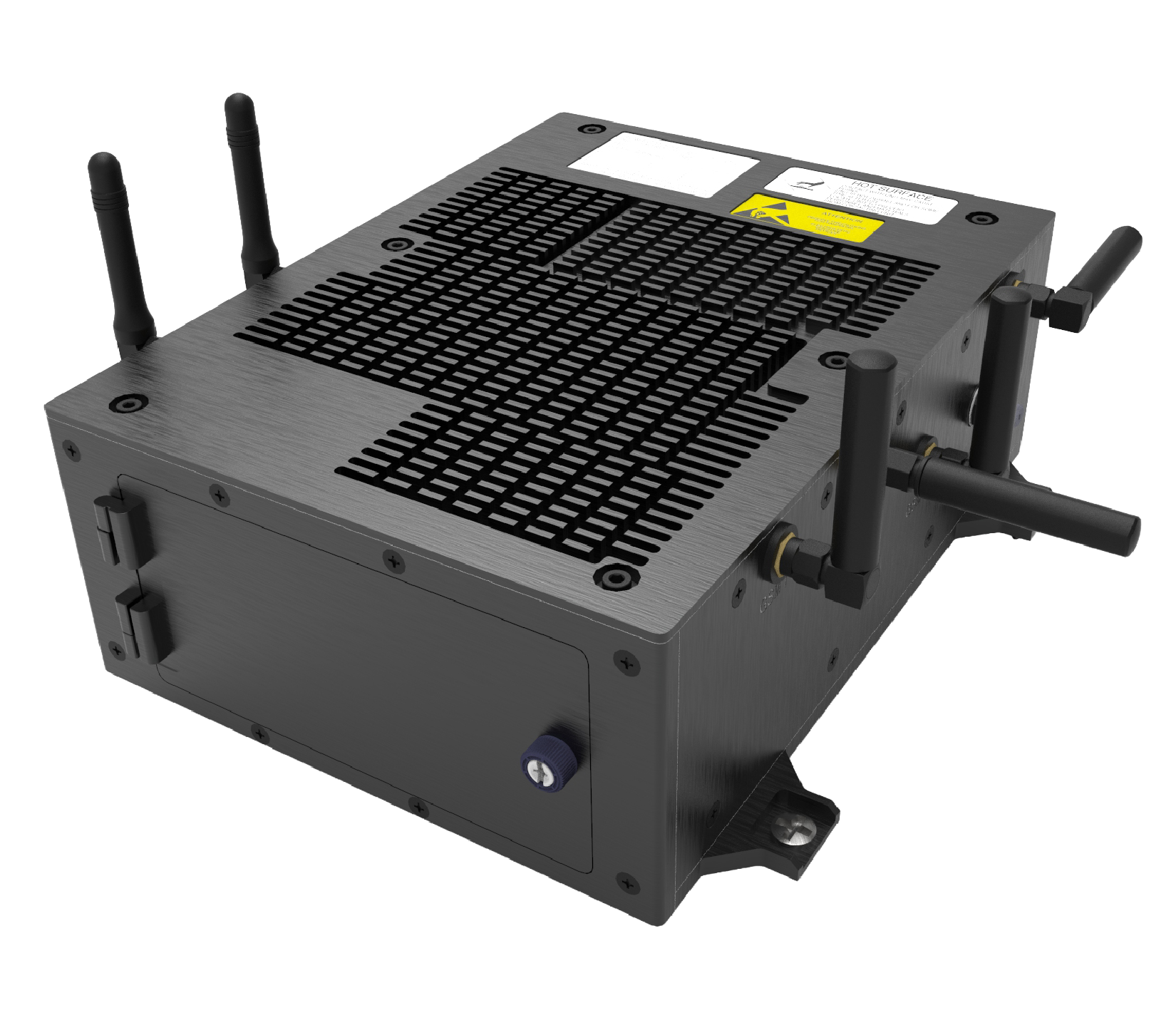

    Media Loader
    • Compact Design
    • Intel Atom Smarc Form Factor
    • 28 VDC Power Input
    • Ethernet Connection
    • USB 3.0 Interface Output
    • 5G Cellular Connection
    • Removable 2.5" SSD Slot
    • Wi-Fi Module (IEEE802.11ac/a/b/g/n)
    • External Antennas
    Crew Control Panel (CCP)
    • 11.6" 1080p Panel
    • 1 x 1 Gbps Ethernet I/O
    • 1 x RS485
    • Multi-Touch Capative Screen
    • 28 VDC Power Input

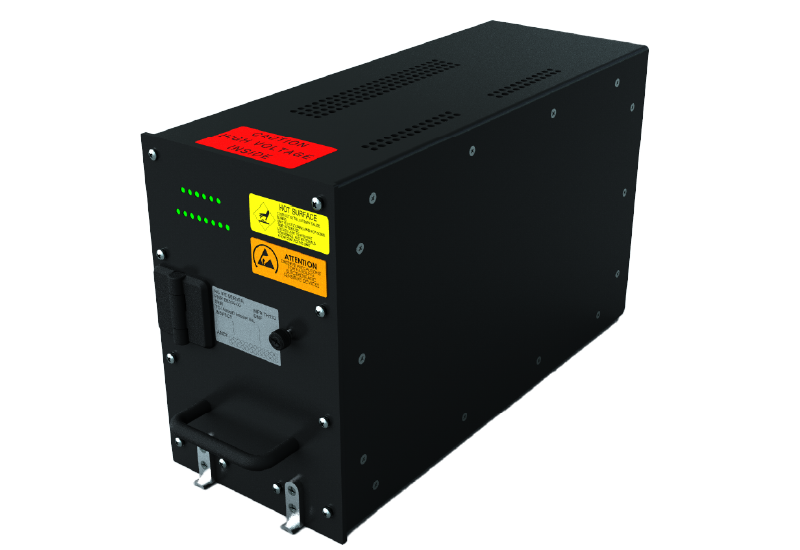

    USB Power Box
    • 115VAC 360Hz-800Hz Input and 28VDC Output Voltage
    • 135W Output Power
    • Intelligent Power Management
    • RS485 for Maintenance
    • Supports up-to 4 USB Outlets
    USB OUTLET DOUBLE-C
    • Double Type C Outputs
    • 60W Output Power
    • Intelligent Power Management

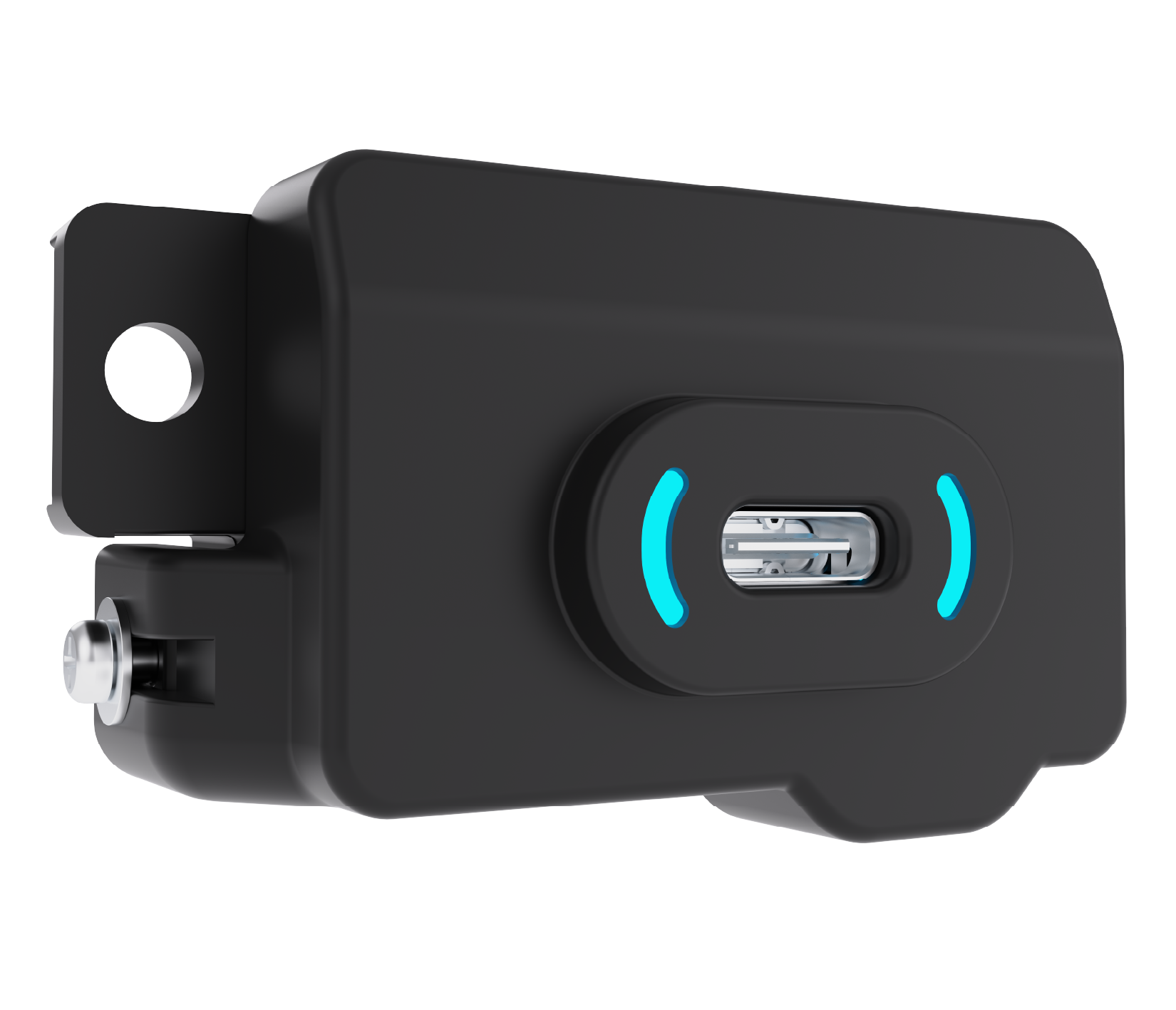

    USB MODULE-C
    • Single Type C Output
    • 60W Output Power
    • Intelligent Power Management
